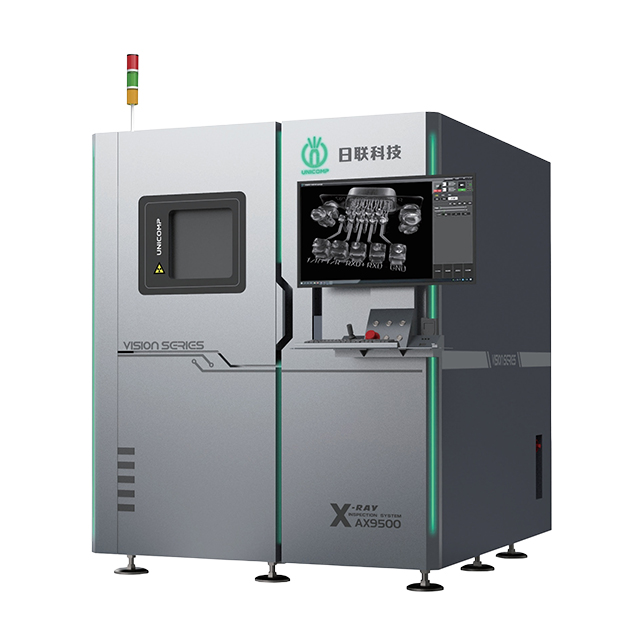

AX9500
UNICOMP
Applications
BGA、CSP、Flip Chip、LED Chip
SMT Soldering Analysis
Automotive Devices, Battery Industry
Aluminum Die Casting, Molding Plastics
Ceramics, Other Dedicate Industries
Function Features
160kV open tube, 1µm focus spot
High resolution with Max detection area FPD
3D CT scanning system（Planar CT + Cone beam CT）
11 axis motion system, 360 degrees inspection
CNC programming with high accuracy and repeatability
High Definition navigation system
Easy tracking function with different angles
Specifications
| System Parameters | |
| Footprint Size | 1560(W)*1830(D)*1900(H)mm |
| Machine Weight | ≈3300kg |
| Max.Tube Power | 64W |
| Max.Target Power | 15W |
| Max.Voltage / Current | 160kV/1000μA |
| X-Ray Leakage | <0.5μSv/h |
| Imaging System | |
| X-Ray Tube Type | Open tube |
| Resolution | 1 μm |
| Detector | FPD |
| System Magnification | 700X (combined 2500x) |
| Inspection Capbility | |
| Maximum load size (2D/2.5D) | 580(X)mm×610(Y)mm |
| Maximum Inspection Size(2D/2.5D) | 540(X)mm×570(Y)mm |
| Maximum Load Size (CT): | Planer CT: 470(X)mm×500(Y)mm Core-beam CT: 100(X)mmx200(Y)mm |
| 3D Imaging Time | 45s |
| Maximum Sample Weight | 10kg |
X-Ray images
Dimensions and Appearance
